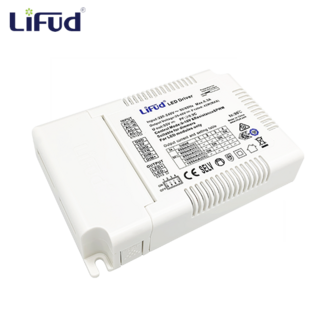

Lifud driver | Constant Current | Compact Dimmable | Multi Dim | 34-42W | 220-240V | 25-40V
In de bijlage vindt u uitgebreide informatie over deze driver van Lifud.
LED Flatlight: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
| Type |
Comp Dim. Multi Dim. IP20 |
| Model |
LF-GDE040YP |
| Output Power |
34 - 42 W |
| Dim. Functions |
0-10V+PWM+Rx |
| Input Voltage |
220 - 240V |
| Output Voltage |
25 - 40V |
| Output Current |
850 - 1050 mA (Dip switch) |
| Efficiency (Typical) |
87% (230 Vac) |
| PF (Typical) |
0.95 (230 Vac) |
| Working Temp. |
-30℃~+50℃ |
| Dimensions |
125*83*26 mm |
| Certificates |
ENEC, CE, CB, RCM, CCC |
| Warranty |
5 Years |
| |
|
| |
|
| |
|
| |
|
| |
|
